LED Batten Fittings & Linear Batten Lights

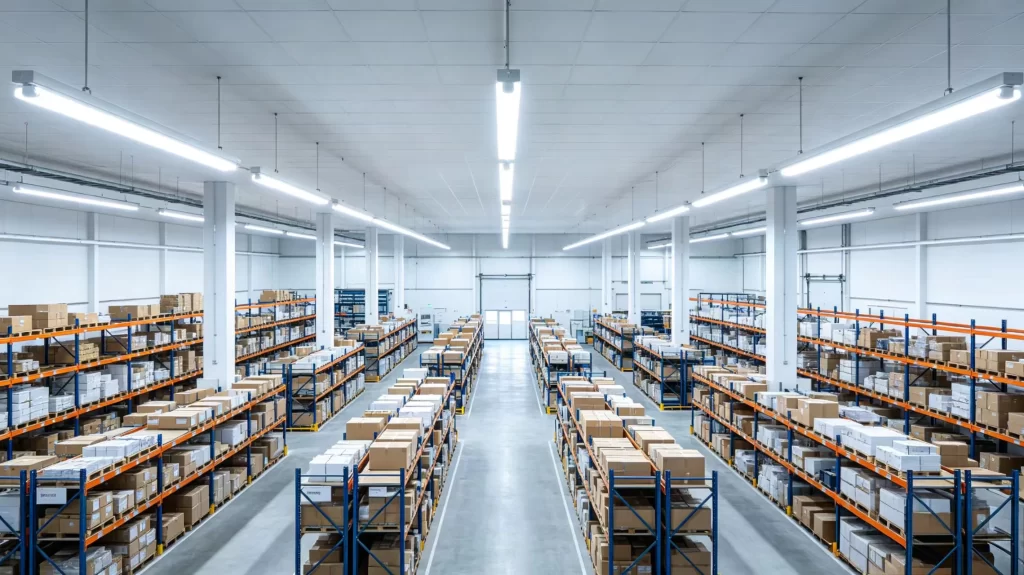

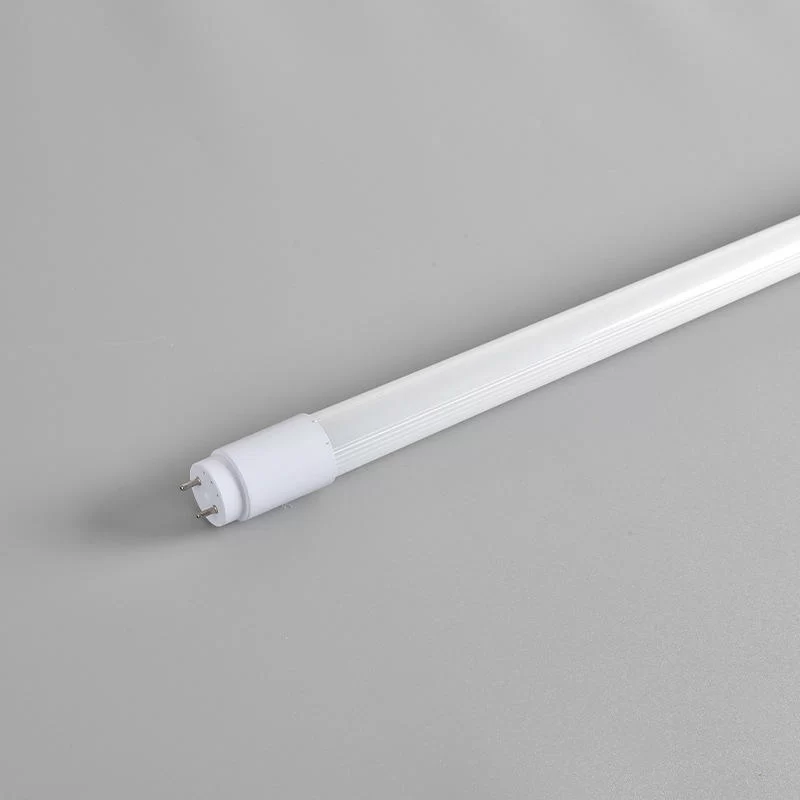

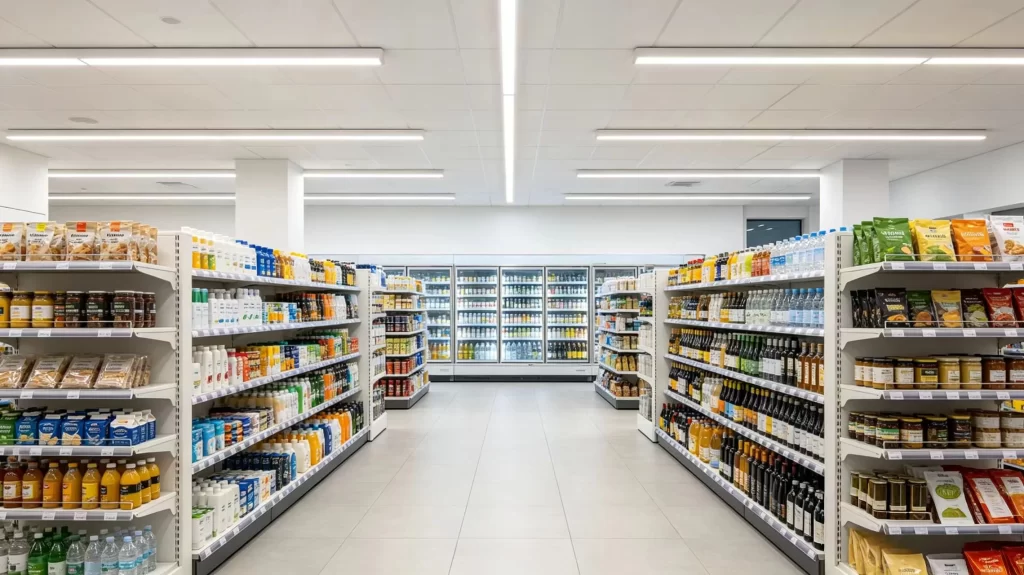

The Jinbiao Professional Batten Series is the modern, energy-efficient replacement for traditional fluorescent batten fittings. Engineered for high-output environments such as supermarkets, warehouses, and modern office corridors, these linear fixtures offer a sleek, low-profile design combined with industrial-grade durability. With our seamless linking technology, you can create continuous lines of light that enhance both visibility and architectural aesthetics.

The Jinbiao Engineering Advantage

• Precision SMT & Color Consistency: Our in-house SMT lines produce high-density LED strips with strict binning control (SDCM < 5). This ensures that when you install 100 units in a single corridor, every light has the exact same color temperature and brightness – a critical requirement for professional engineering projects.

• 16 Years of Advanced Thermal Processing (Since 2010): We utilize high-grade 6063-T5 aluminum heat sinks within our batten fittings. This superior thermal management, perfected over 16 years of manufacturing, prevents LED decay and ensures a stable 50,000-hour operational life.

• Rapid Installation Design: As a factory with deep processing experience, we have optimized our chassis for “Quick-Fix” installation. Large wiring terminals and tool-free end-caps significantly reduce labor costs for contractors on-site.

Key Performance Features

• Seamless Linkable System: Integrated male/female connectors allow for continuous, gap-free linear runs of up to 15 fixtures on a single power feed.

• High Luminous Efficacy: Delivering 120-140 lm/W (Standard) and up to 160 lm/W (Pro Series), maximizing ROI for commercial facility managers.

• Flicker-Free Comfort: Equipped with premium ripple-free constant current drivers (AC 85-265V), essential for productivity in workspaces and retail environments.

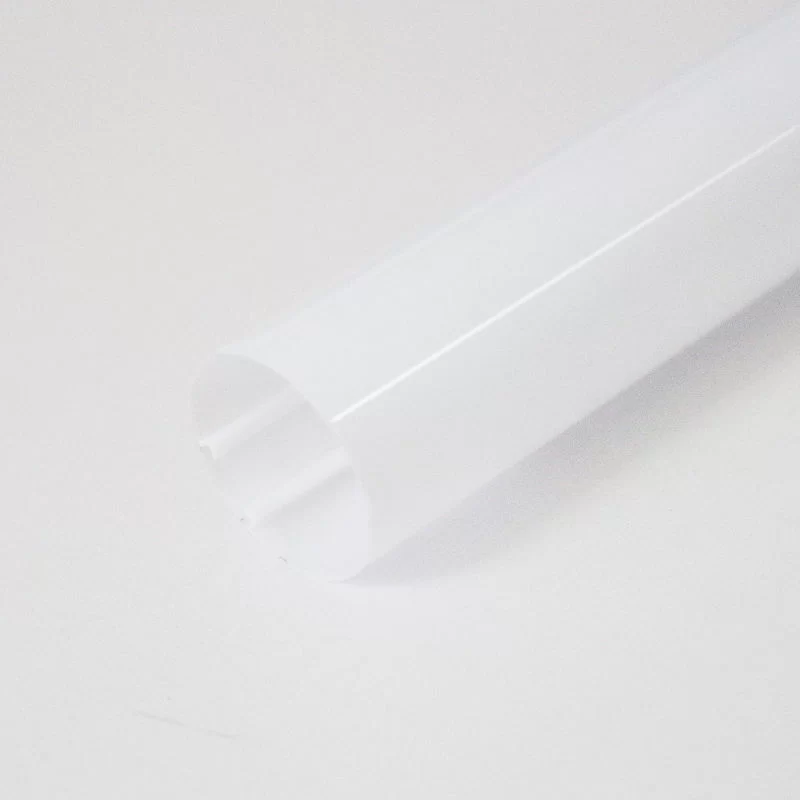

• Robust Diffuser Technology: High-transmittance, non-yellowing PC diffusers provide wide, uniform light distribution without “dark spots” or glare.

Technical Specifications

Parameter	Specification
Model	JB-LBF Linear Series
Wattage Options	20W / 40W / 50W / 60W
Lengths	600mm (2ft) / 1200mm (4ft) / 1500mm (5ft)
Color Rendering Index (CRI)	Ra > 80 (Ra > 90 for specialized retail)
Color Temperature	3000K / 4000K / 6000K / CCT Switchable
Beam Angle	120 Degrees
Mounting	Surface Mounted or Suspended (Kits Included)
Certification	CE, RoHS, ISO 9001:2015

Global Project & SKD Support

• SKD & CKD Solutions: We provide specialized semi-assembled kits for our partners in Africa and Mexico, helping you reduce import duties and leverage local assembly advantages.

• Photometric Data (IES/LDT): Full files provided for Dialux simulations, ensuring your project meets local lighting lux requirements.

• Custom Branding (OEM): Professional laser-marking on the aluminum base and custom-designed project packaging.

Quality Assurance

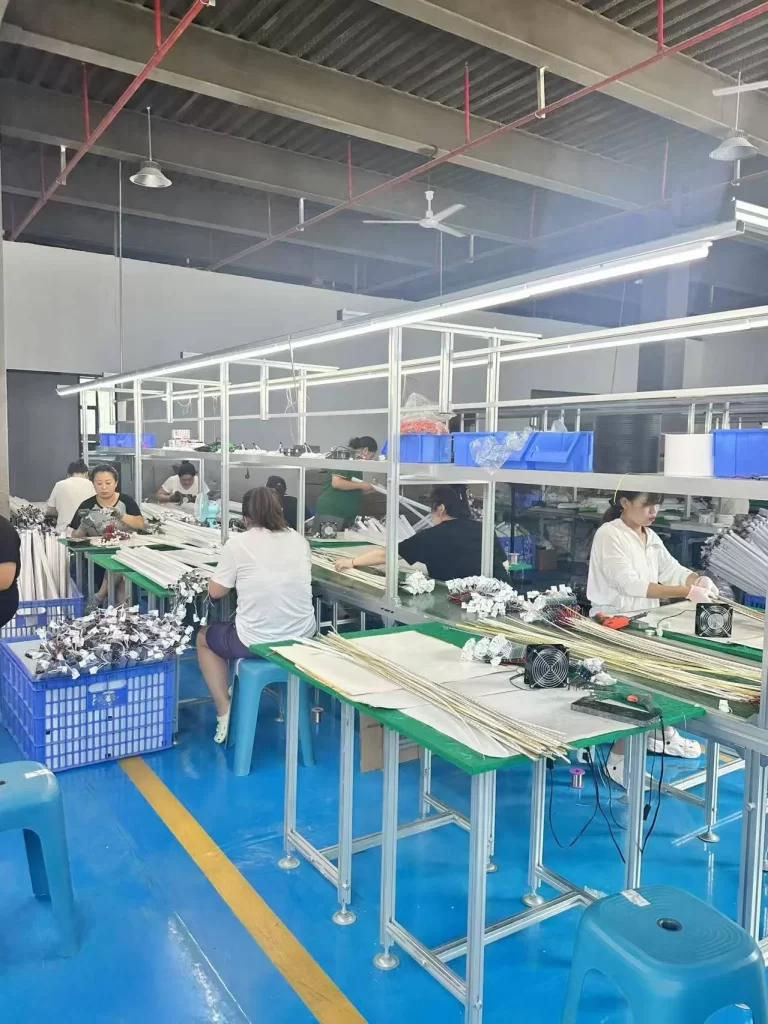

Every LED Batten undergoes a rigorous 48-hour continuous aging test in our Shanxi facility. We offer a 3 to 5-year solid warranty, backed by 16 years of manufacturing integrity.
