Heavy-Duty IP66 Die-cast LED Floodlights
PRODUCT PARAMETERS
Description

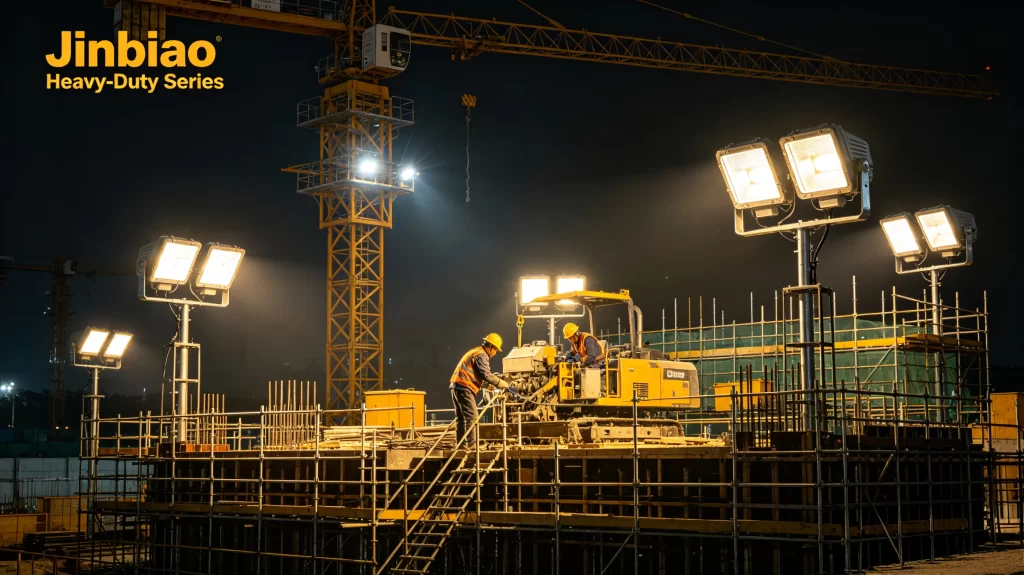

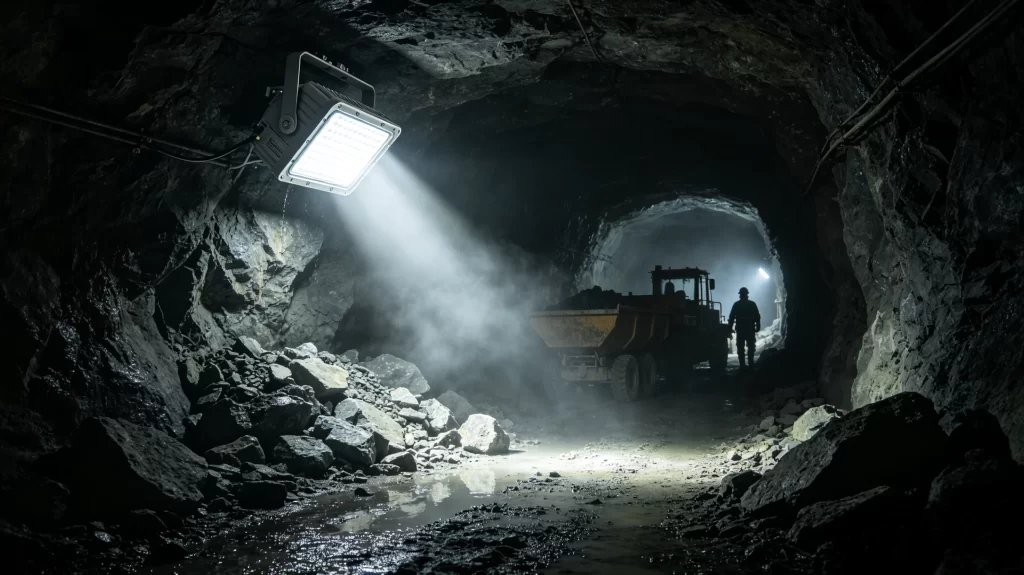

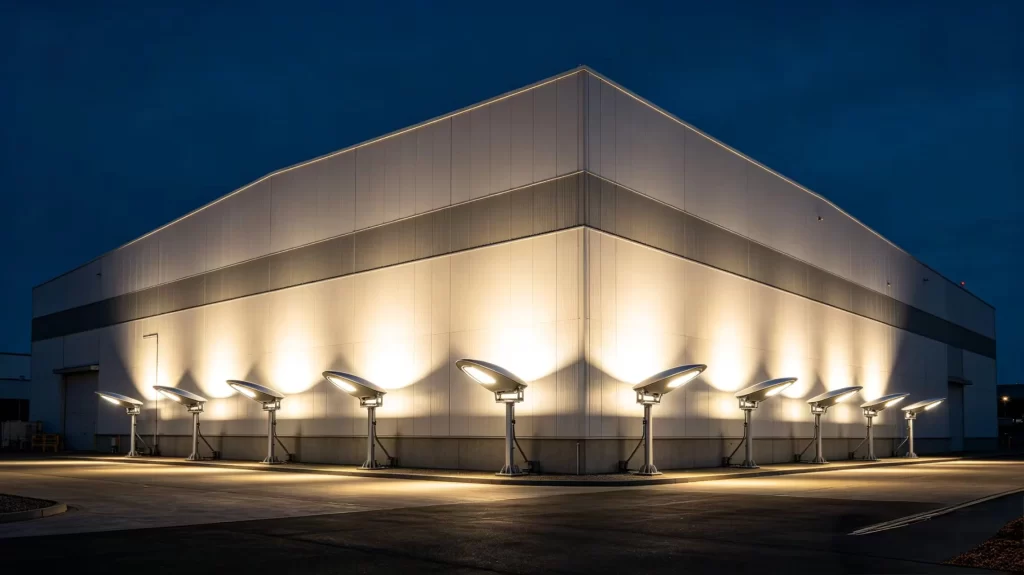

The Jinbiao Heavy-Duty Series represents the pinnacle of professional led lighting solutions, engineered for the most unforgiving industrial environments. Constructed from premium ADC12 die-cast aluminum and sealed to IP66 standards, these industrial floodlight units provide powerful, wide-angle outdoor site illumination for mining sites, construction zones, chemical plants, and exterior architectural projects. Where traditional hid lighting fails due to heat, vibration, or corrosion, our led floodlight fixtures deliver cutting-edge performance that thrives in the harshest conditions.
The Jinbiao Manufacturing Advantage

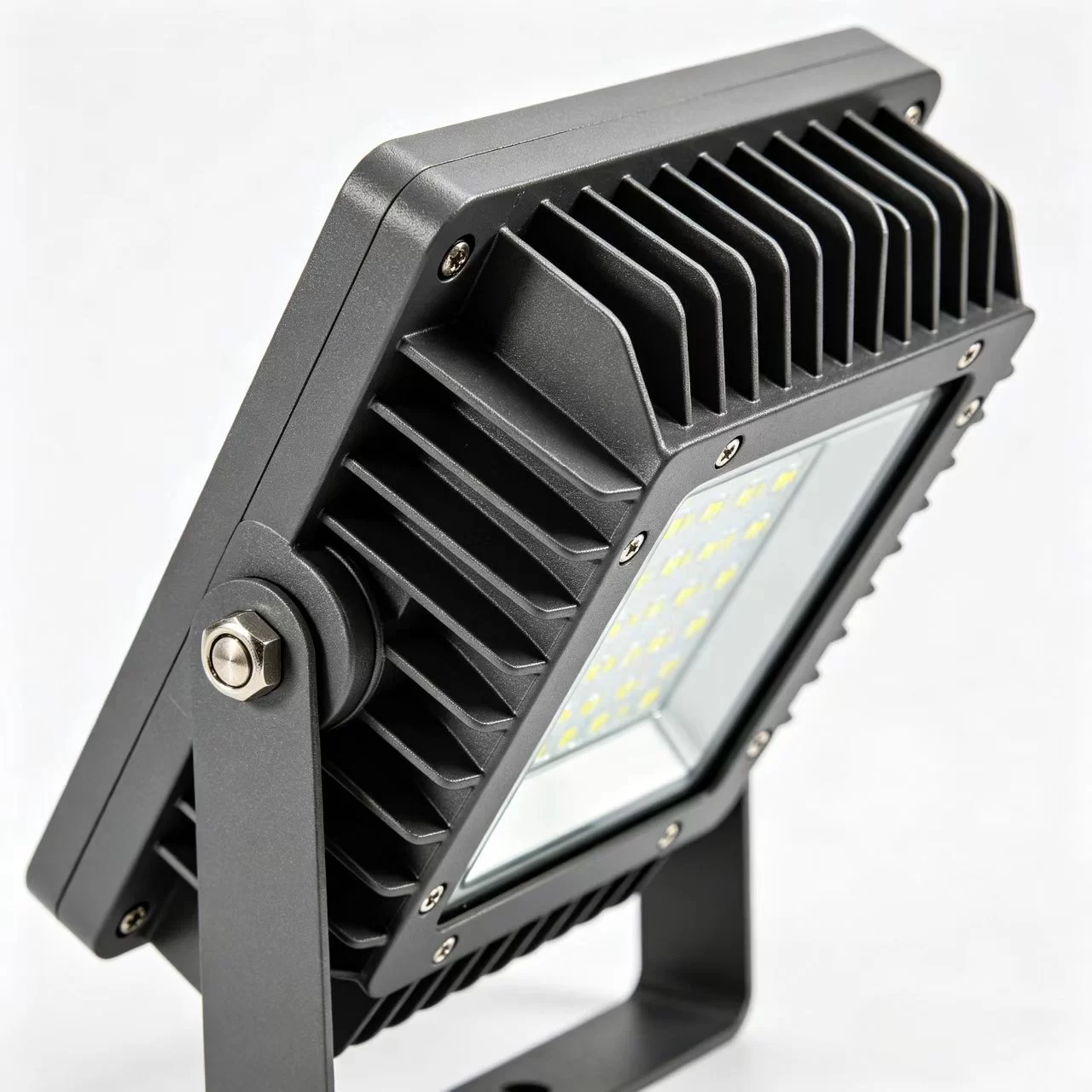

• 16 Years of Precision Die-Casting (Since 2010): Our deep experience in metal processing with industry-leading technology ensures a high-density, porous-free housing with optimized cooling fins. This structural mastery provides a massive surface area for heat dissipation, maintaining low junction temperatures even in 24/7 industrial operations.
• Advanced In-house SMT & Thermal Control: We mount our own high-power LED modules using automated SMT lines. By using high-conductivity aluminum PCBAs and high-grade thermal grease, we ensure the heat from the LED chips is efficiently transferred to the housing, preventing lumen depreciation and delivering exceptional longevity.
• Multi-Stage Anti-Corrosion Treatment: Every housing undergoes a rigorous pre-treatment and is finished with high-quality AkzoNobel powder coating. This ensures the fixture remains rust-free and UV-resistant in salt-spray coastal areas of Mexico or the humid industrial zones of Africa.
Key Performance Features

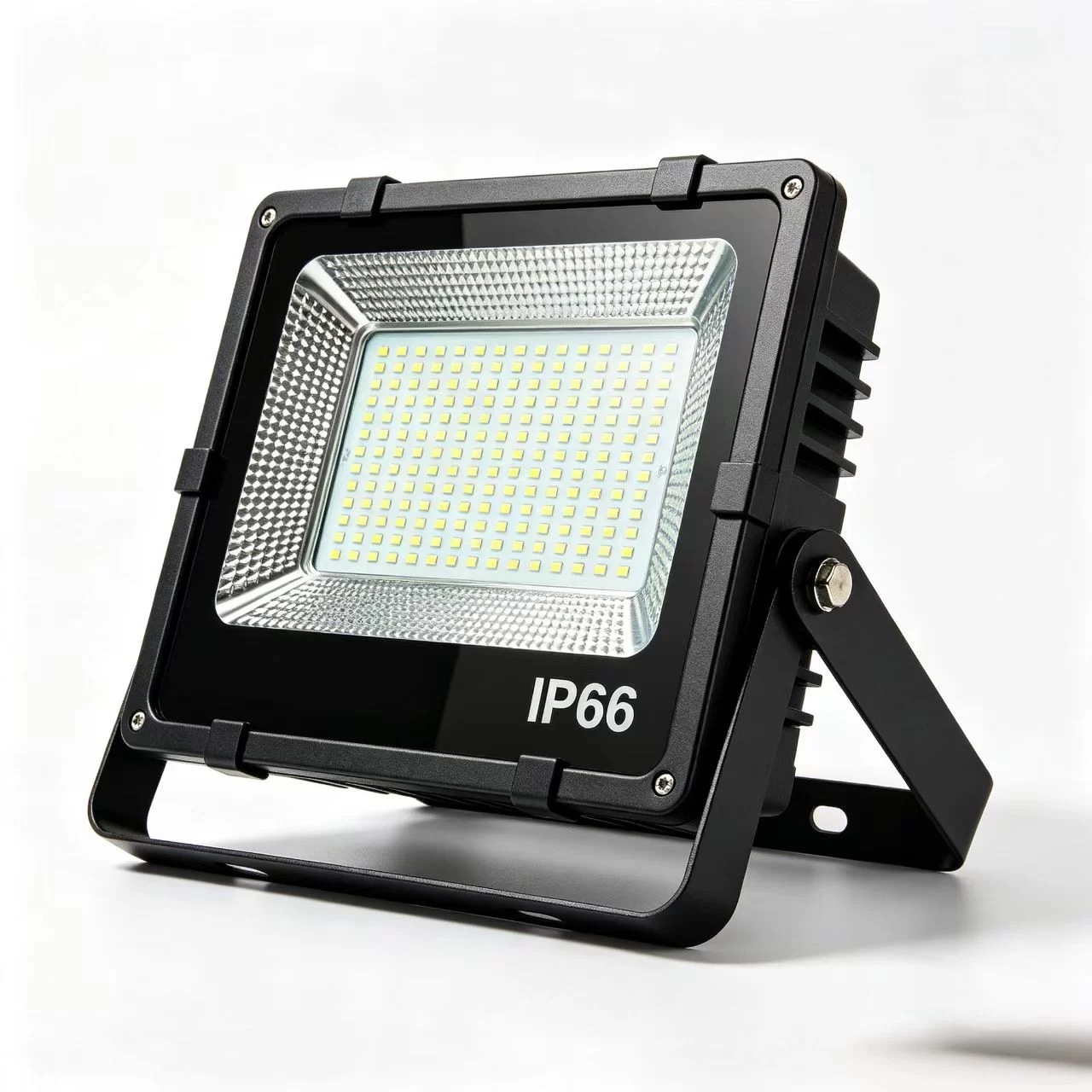

• IP66 Waterproof & IK09 Impact Rated: IP66 Waterproof & IK09 Impact Rated: Total protection against heavy water jets, dust ingress, and high-impact mechanical stress from flying debris.
• Industrial-Grade Surge Protection: Industrial-Grade Surge Protection: Equipped with 10KV/20KV surge protectors (SPD) as standard to protect the internal driver from lightning strikes and unstable industrial power grids.

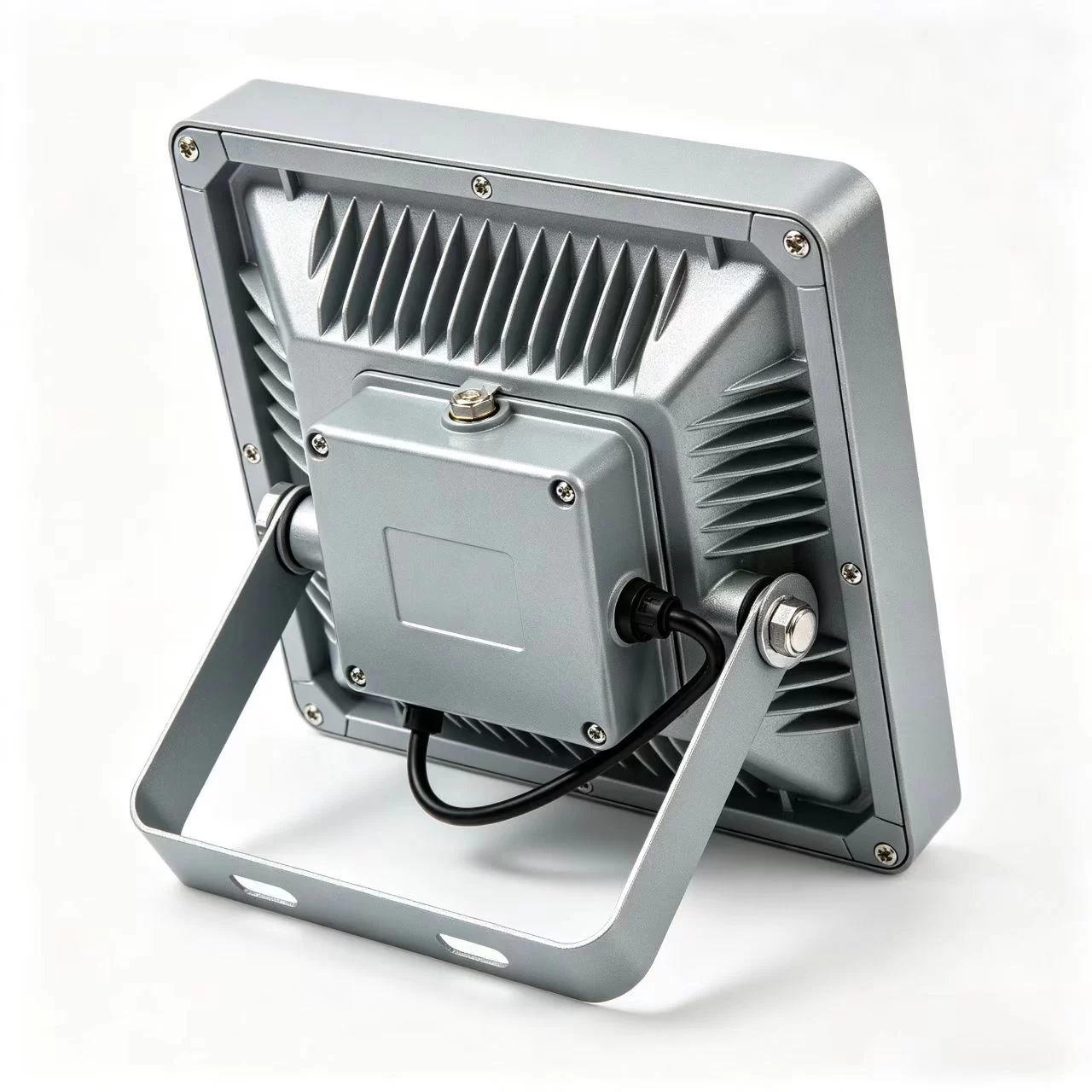

• 180° Adjustable Heavy-Duty Bracket: Reinforced steel U-bracket allows for precise tilting and secure mounting on walls, poles, or ground surfaces, perfect for hard-to-reach locations.
• High Luminous Efficacy: 130 – 150 lm/W (Utilizing Philips/Bridgelux chips) to provide maximum visibility with minimum energy consumption, helping you reduce electricity costs and achieve fast roi compared to hid lighting sources.
•Extended Lifespan: L70 rated for 100,000 hours of operation, dramatically reducing lighting maintenance requirements in challenging industrial environments.
Technical Specifications
| Parameter | Specification |
| Model | JB-HDF Industrial Series |
| Wattage Options | 50W / 100W / 150W / 200W / 300W / 400W |
| Input Voltage | AC 85-265V / 100-277V (Wide-range industrial drivers) |
| Beam Angle | 60° / 90° / 120° Symmetric Distribution |
| Color Rendering Index (CRI) | Ra > 80 |
| Material | ADC12 Die-cast Aluminum + Tempered Glass |
| Certification | CE, RoHS, ISO 9001:2015, IP66, IK09 |
| Working Temperature | -40°C to +55°C (Tested for extreme climates) |
Global Project & SKD Support
• SKD & CKD Solutions: We provide specialized semi-assembled kits (Housing + PCBA + Driver) to help partners in Mexico and Africa reduce import duties and optimize logistics costs.
• Photometric Data (IES Files): Full support for Dialux simulations to ensure your industrial project meets required lux levels and safety standards.
• Custom Branding (OEM): Professional laser-engraving of logos and specialized industrial packaging for major distributors. Our comprehensive led floodlight portfolio can be customized to meet your specific market requirements.
Quality Assurance
Every Heavy-Duty Floodlight undergoes a 48-hour continuous aging test and a high-pressure salt-spray simulation in our Shanxi facility. We offer a 10-year warranty, backed by 16 years of manufacturing integrity.
FAQs
How do you ensure the heat resistance of your decorative lights?
For products like our Acrylic Flower series, we use UV-stabilized, high-grade acrylic and professional-grade LED chips with low thermal resistance. Our in-house SMT technology ensures stable current flow, preventing overheating and ensuring the material won't yellow or deform over time.
Do your solar products work in low-sunlight areas?
Our solar street lights feature high-efficiency monocrystalline panels and Intelligent Power Management (IPM), allowing them to remain functional for 3-5 rainy days.
What is the lead time for customized orders?
Standard products are usually in stock. For customized OEM orders (like specific PCBA designs), our lead time is typically 15-25 days, thanks to our fully automated production lines in Guangdong and Shanxi.
How do you handle shipping costs for 40ft containers?
We work with top-tier freight forwarders to lock in competitive rates. We provide a detailed Loading Plan to maximize container space (CBM optimization), saving you 5-10% on sea freight costs.
Is it possible to visit your factory virtually?
Absolutely. We offer Live Video Tours via WhatsApp or Zoom. You can see our SMT lines, die-casting centers, and aging test rooms in real-time to verify our scale and quality.
How do you handle warranty claims for international orders?
We operate on a "Replacement First" policy. If a product fails within the warranty period, we ship replacement parts or new units with your next shipment, or provide a credit note immediately—no need to ship bulky items back to China.
