Modular LED Floodlight: IP66 & IK10 High-Mast Stadium Luminaire

Engineered for Container Terminals, International Sports Arenas, and Extreme High-Altitude Tower Lighting

In large-scale industrial infrastructure and high-mast tower installations, deploying a dependable Modular LED Floodlight is essential for maintaining site safety, continuous operational productivity, and television broadcast compliance. When extreme thermal accumulation, heavy marine salt fog, storm-force wind loads, and industrial grid fluctuations cause standard one-piece floodlights to degrade or fail prematurely, Jinbiao Lighting delivers uncompromising, maintenance-free high-lumen performance.

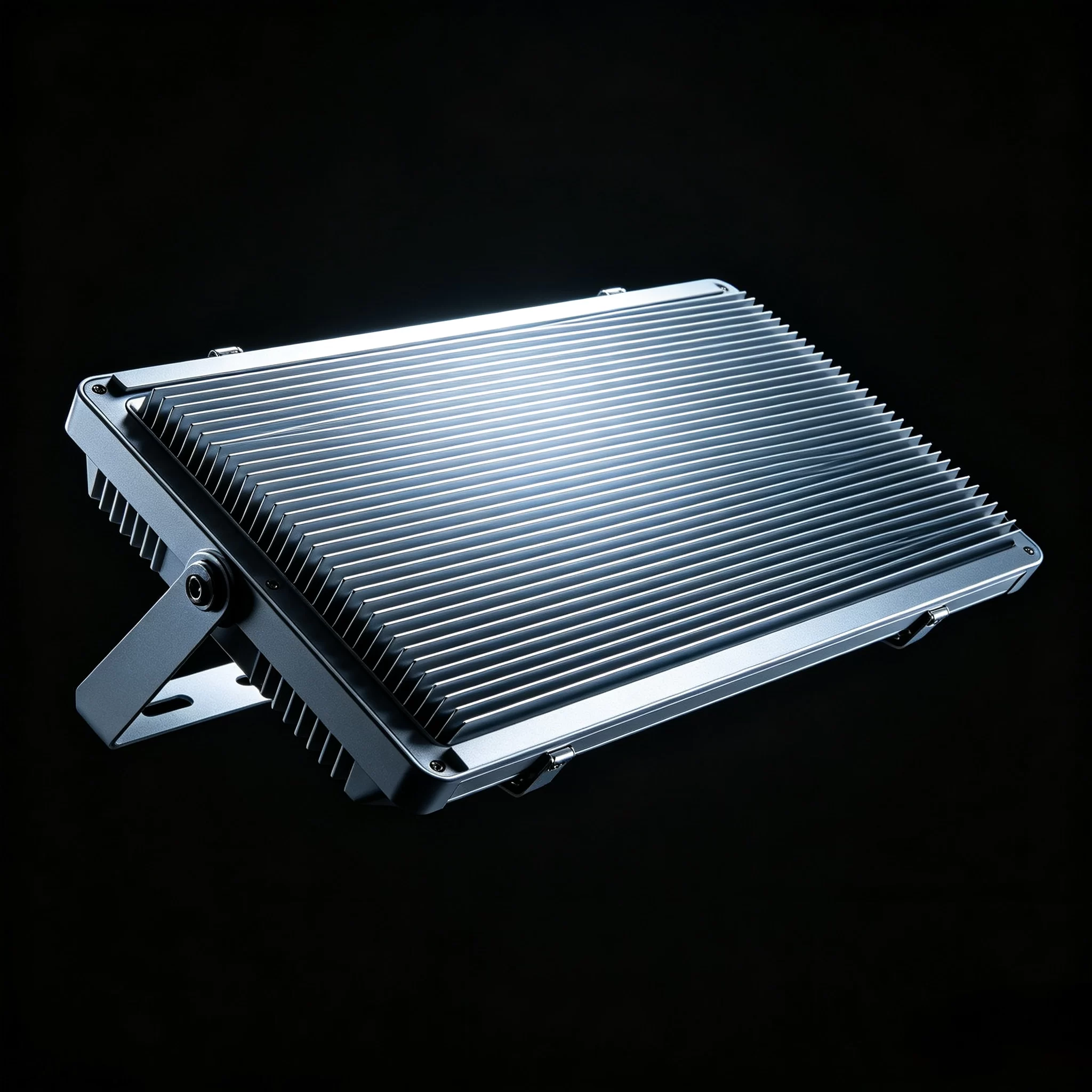

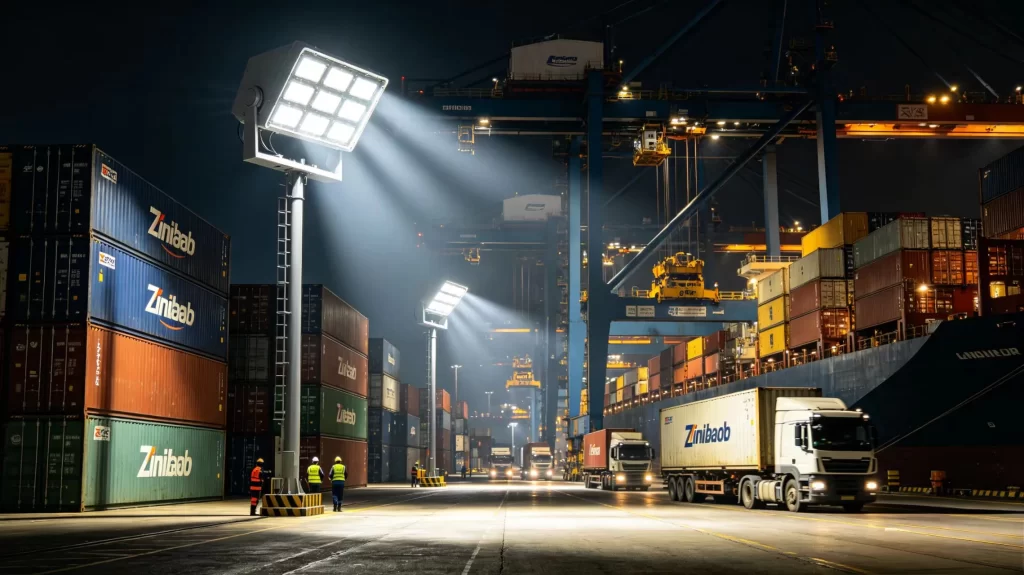

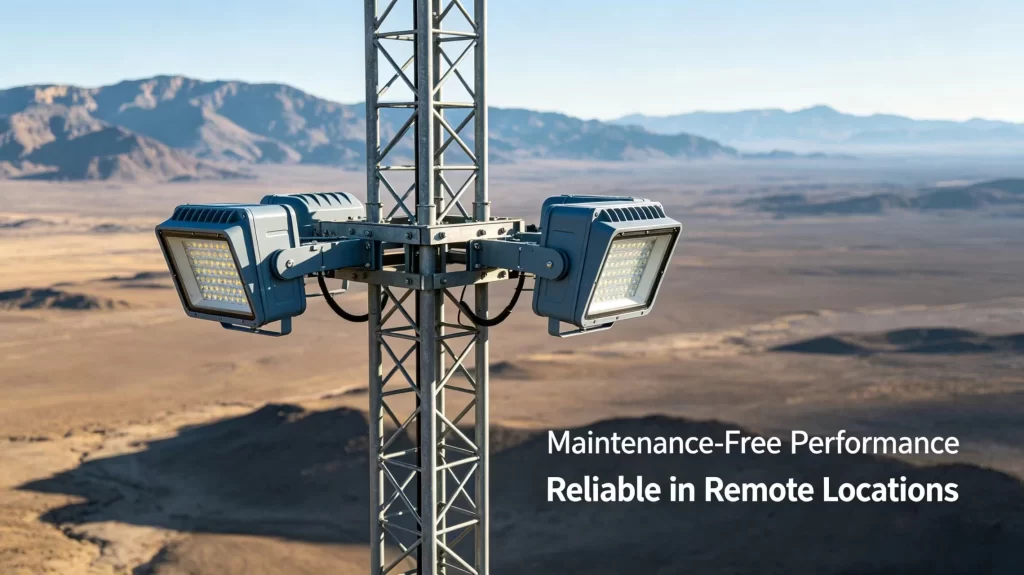

Constructed from high-density ADC12 die-cast aluminum with independent thermal channels, our modular systems provide scalable illumination ranging from 200W up to an ultra-high-output 1200W. Whether illuminating high-speed crane towers at busy container docks, high-altitude airport aprons, or international sports stadiums, our certified IP66 waterproof and dust-tight luminaires under IEC 60529 combined with IK10 mechanical impact protection ensure reliability where maintenance access is complex and costly.

The Jinbiao Engineering Advantage: Why Built Tougher?

• 16 Years of Modular Structural Mastery (Since 2010): Unlike conventional flat-panel floodlights that suffer from severe central heat trapping, every Modular LED Floodlight we manufacture utilizes an “Independent Cooling” architecture. Each 100W–150W individual module features its own dedicated extruded heat sink separated by aerodynamic air gaps. This prevents thermal crosstalk between adjacent modules, keeping junction temperatures significantly below industry averages and ensuring an operational life exceeding 50,000 hours (L70).
• Precision SMT & High-Current Reliability: Ultra-high-power luminaires operate under massive electrical current loads. Our automated in-house SMT lines apply military-grade precision soldering with reinforced thermal paste application. This eliminates micro-voids and thermal expansion fatigue, effectively preventing the catastrophic “cascading failures” commonly seen in low-end multi-module fixtures.

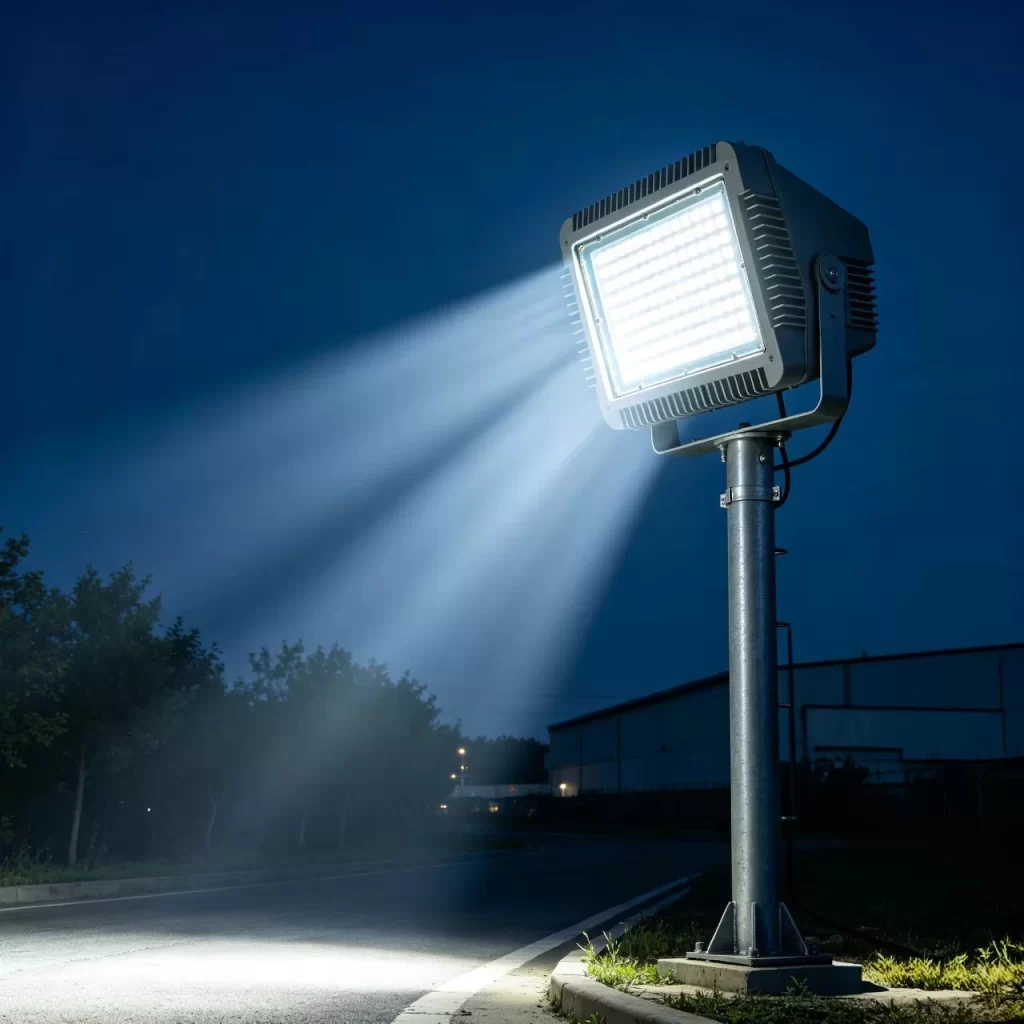

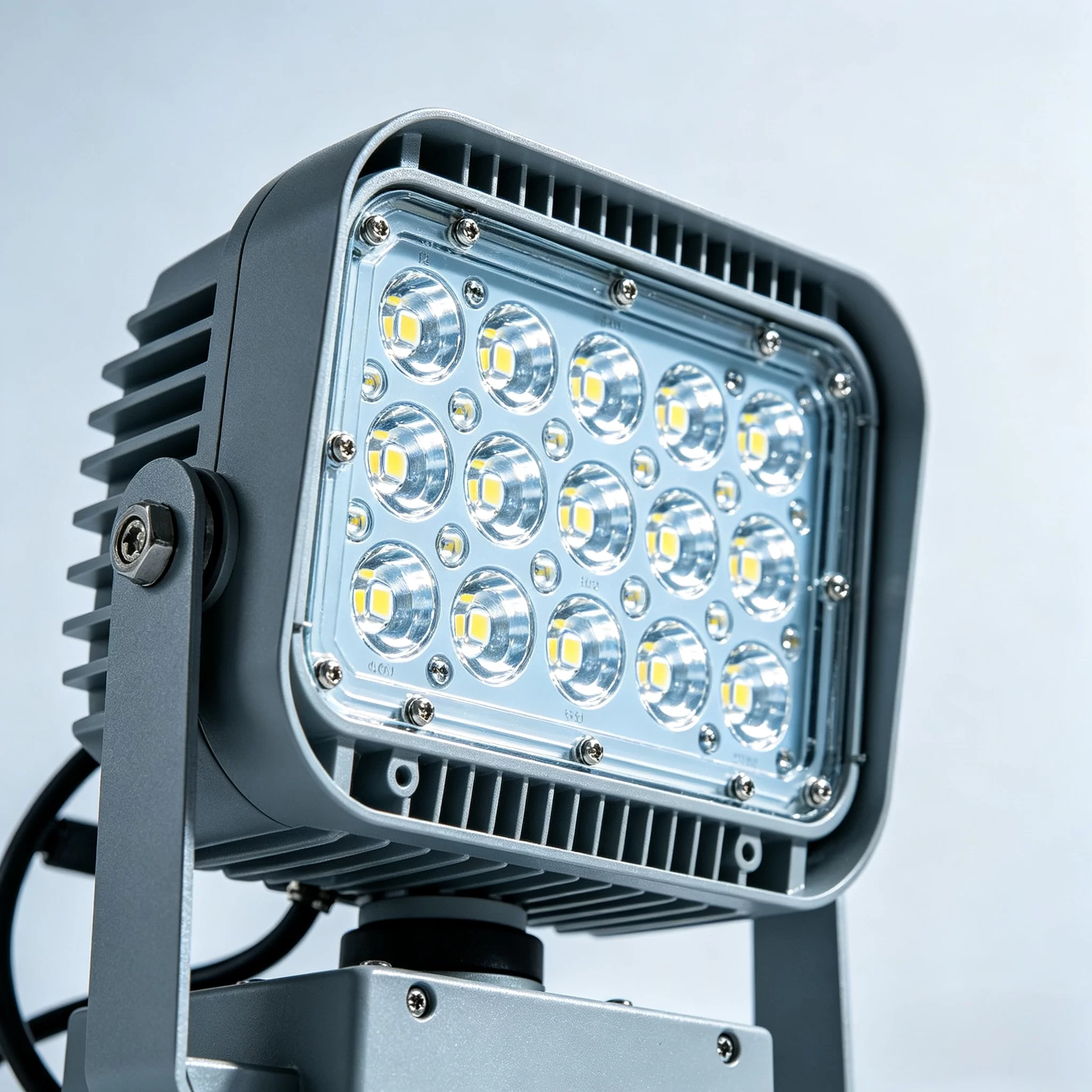

• Optical Versatility with 100% Light Utilization: To meet stringent municipal and sports engineering bids, we integrate professional-grade micro-lenses offering versatile beam distributions (15° / 30° / 60° / 90° / 120°). Whether requiring narrow-beam high-intensity projection from a 30-meter high-mast tower or wide-angle grazing across a shipping port tarmac, our optics eliminate light spillage and light pollution while maximizing lux on target.

Key Performance: Why Our Modular LED Floodlight Outperforms

• Modular Redundancy & Fail-Safe Architecture: Mission-critical infrastructure cannot afford total blackout risks. Our independent modular circuitry ensures that in the rare event of an individual driver or PCB fault, all remaining modules continue operating at full output. This built-in redundancy guarantees uninterrupted visibility for port security and continuous industrial operations.
• 10kV / 20kV Industrial Surge Protection (SPD): High-mast towers act as natural lightning rods and are vulnerable to industrial grid switching transients. Our fixtures are equipped with integrated high-specification Surge Protection Devices compliant with IEEE / IEC standards, shielding high-value LED chips and power supplies against massive 10kV to 20kV electrical spikes.
• Aerodynamic Low EPA (Effective Projected Area): High winds create tremendous mechanical stress on mounting poles. The engineered spacing between our independent modules allows high-velocity winds to pass directly through the luminaire body. This aerodynamic self-cleaning design dramatically reduces structural wind load and pole sway during severe coastal typhoons or desert storms.
• Premium Driver Integration & 4K Broadcasting Ready: Powered by world-class MeanWell or Inventronics constant-current drivers, our systems guarantee zero visual flicker. Configured with a Color Rendering Index (CRI) exceeding Ra > 90, our professional series meets rigorous CIE and UEFA / FIFA lighting guidelines, ensuring pristine high-definition 4K UHD television broadcasting without color distortion or strobe effects.

Technical Specifications Overview

Comprehensive Global Project & Tender Support

We collaborate directly with international EPC contractors, port authority procurement engineers, and stadium lighting consultants to maximize project efficiency and commercial ROI:

• SKD & CKD Tariff Reduction Solutions: To assist long-term global partners across Africa, Latin America, and Southeast Asia in reducing high import tariffs and freight costs, our modular architecture is optimized for SKD (Semi-Knocked Down) and CKD shipment. Importing independent die-cast aluminum housings, PCBA modules, and drivers separately reduces container shipping volume by up to 40% and expands localized assembly margins.
• Professional Photometric Simulation (IES / DIALux): Securing high-mast and stadium tenders requires strict verification of horizontal illuminance, uniformity ratio ($U_0$), and glare rating ($GR$). Our photometric engineering team provides complete specification-grade IES files and comprehensive DIALux lighting simulation reports within 24 hours to guarantee absolute tender compliance.
• Custom Mounting Brackets & Laser Aiming: We manufacture custom heavy-duty mounting brackets designed to fit specialized high-mast crown rings and stadium catwalks. To ensure installation accuracy at heights exceeding 30 meters, optional integrated laser-pointer alignment systems allow field technicians to aim each module with pinpoint precision. For indoor industrial complexes, explore our Heavy-Duty Industrial High Bay Series.

100% Quality Assurance & Factory Protocol

Every Modular LED Floodlight leaving our manufacturing facility must pass an exhaustive verification protocol before cartoning:

1. 72-Hour Continuous Stress & Thermal Test: Full-load operational aging under elevated ambient temperatures to verify independent heat sink efficiency and driver thermal stability.
2. High-Frequency Vibration Testing: Simulated heavy-industrial transit and high-mast wind resonance testing to guarantee absolute mechanical structural integrity.
3. High-Voltage Dielectric & Submersion Verification: Strict dielectric withstand testing and water immersion checks to validate IP66 sealing reliability under severe weather conditions.

The Jinbiao Guarantee: Backed by 16 years of manufacturing integrity, we support our specification-grade modular series with an unconditional 5 to 7-Year Solid Warranty. Contact our engineering department today to request sample modules, custom DIALux photometric layouts, and factory-direct export quotations.

Technical Reviewer & Product Specialist

Written & Technically Verified by:

Abel Tian

International Business Specialist & LED Industrial Lighting Solutions Director

Shanxi Jinbiao Lighting Co., Ltd.

With extensive expertise in cross-border industrial supply chains, OEM/ODM manufacturing, and commercial illumination engineering, Abel specializes in providing specification-grade, high-lumen LED lighting solutions for global contractors, port authorities, and large-scale sports infrastructure projects.

🔗 Connect with Abel Tian on LinkedIn | Let’s discuss factory-direct pricing, custom SKD tariff-reduction strategies, and DIALux photometric planning for your next high-mast tender.
