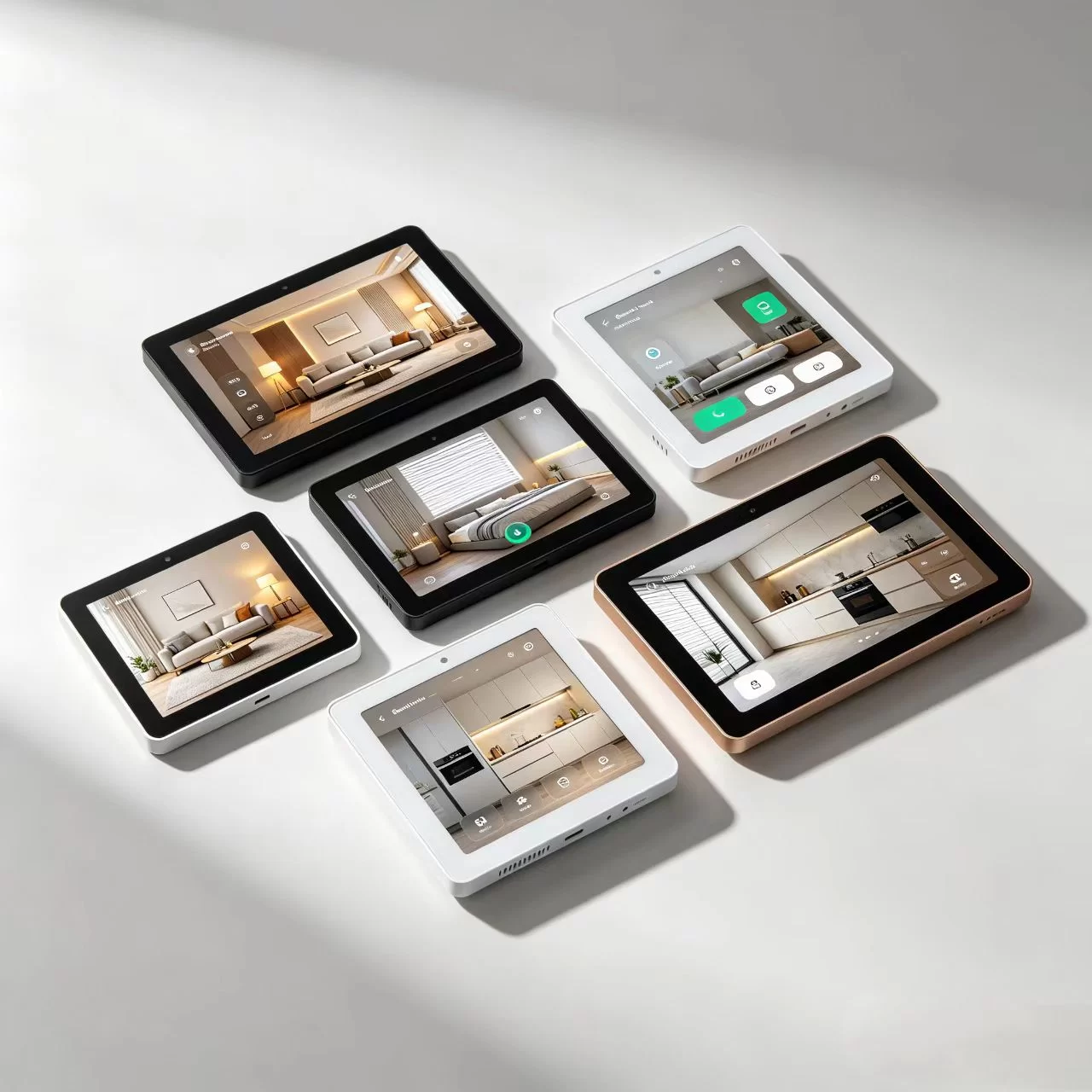

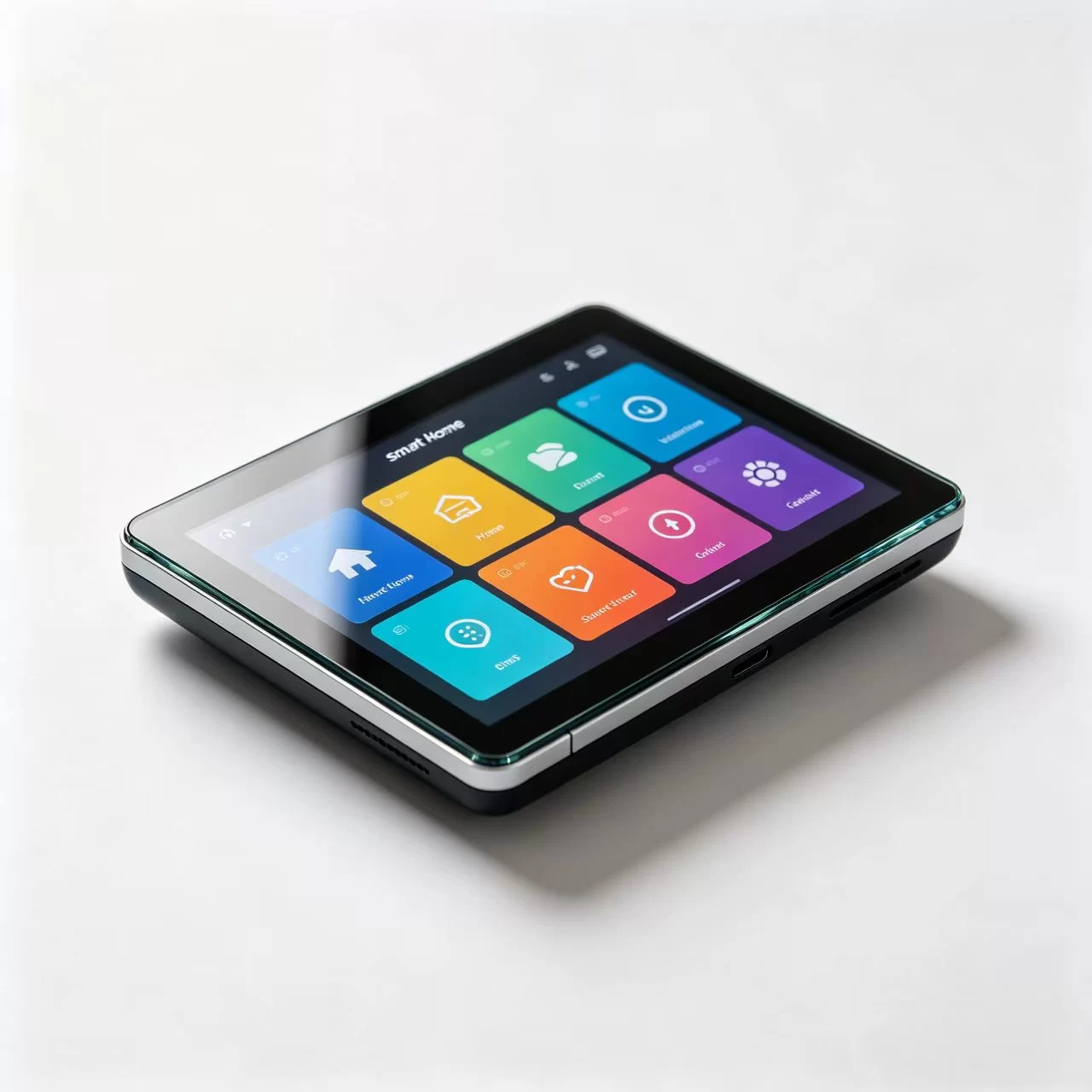

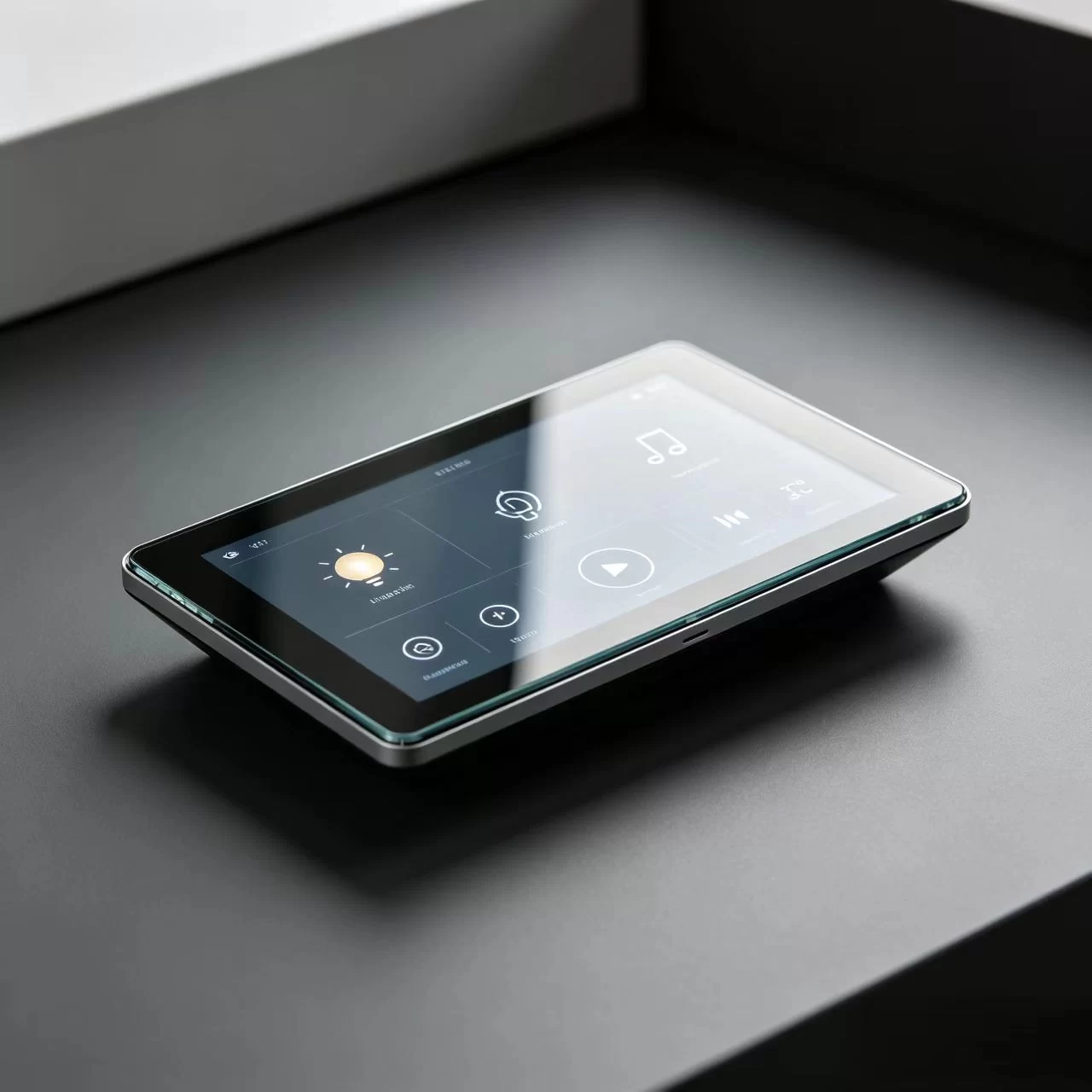

Smart Touch Control Panel: HD IPS Display & Zigbee 3.0 Smart Building Gateway

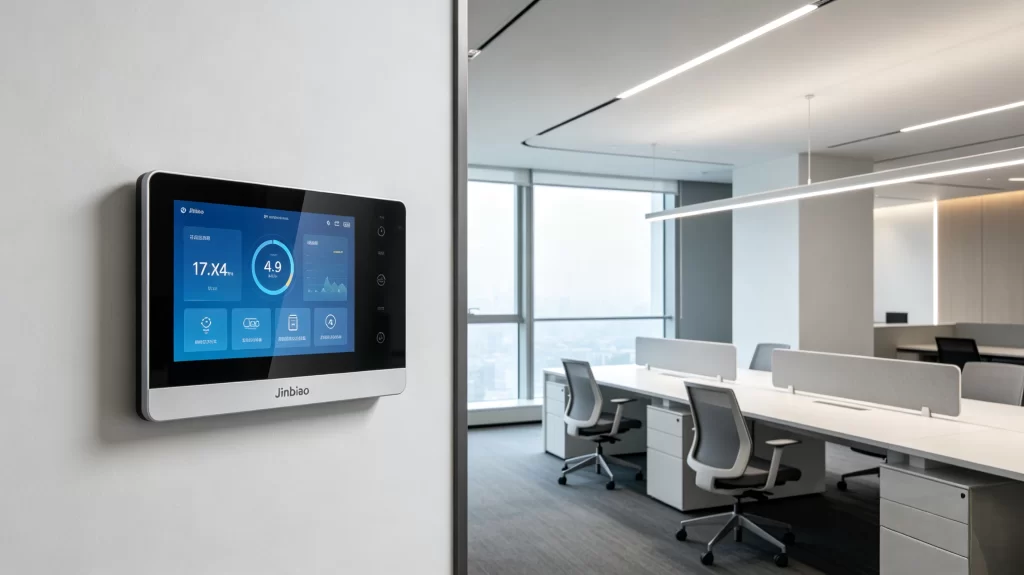

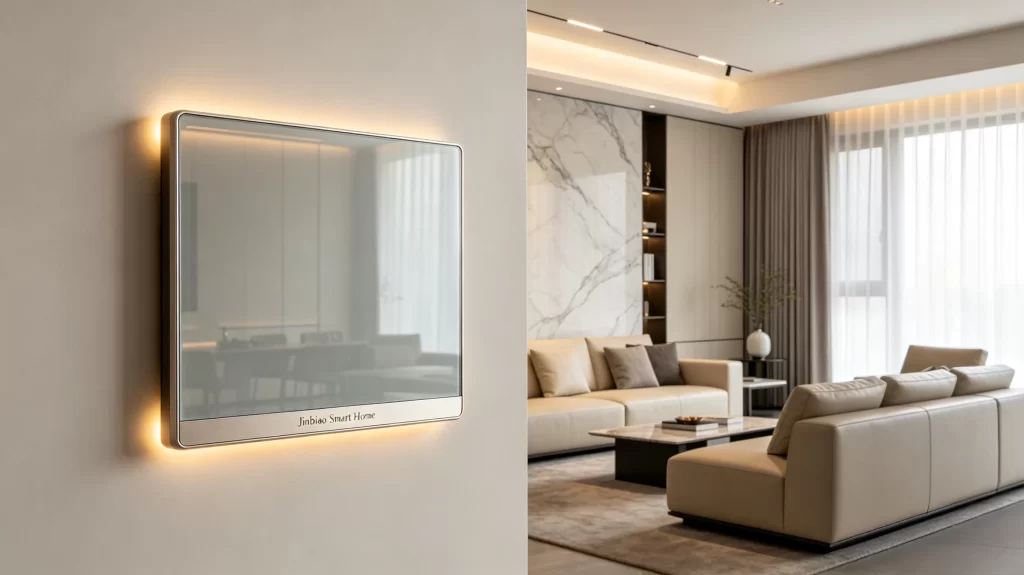

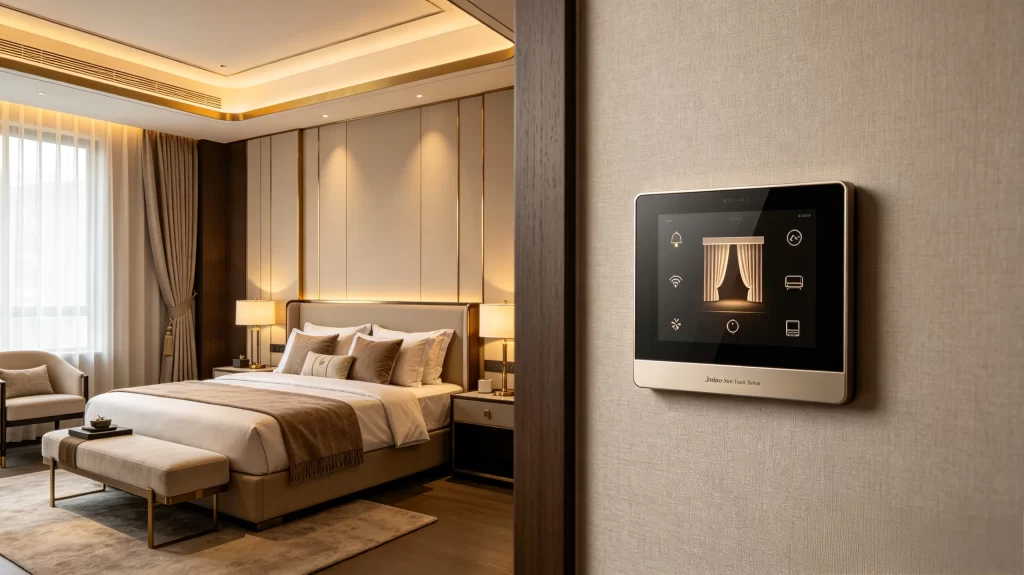

In the modern landscape of high-end residential real estate, luxury hospitality, and commercial smart offices, specifying a central Smart Touch Control Panel is essential for seamlessly managing building automation. Replacing redundant multi-gang wall switches, this wall-mounted multi-touch interface acts as a universal gateway—enabling users to manage intelligent lighting, motorized curtains, HVAC climate control, and audio systems from a single, intuitive screen.

As a government-supported manufacturing enterprise with 16 years of engineering mastery, Jinbiao Lighting produces precision Smart Touch Control Panel hardware built for international smart building integration. Combining industrial-grade IPS displays, embedded quad-core ARM processors, and native Zigbee 3.0, Bluetooth Mesh, and Matter protocol support, our wall panels deliver lag-free, 24/7 operational reliability. For commercial space illumination, you can also explore our Architectural LED Panel Light Series.

1. Advanced Hardware & Smart Touch Control Panel Architecture

A central control panel is essentially an embedded, wall-mounted computer. Standard consumer-grade tablets fail under 24/7 continuous wall-box operation due to thermal buildup and display lag. Every Smart Touch Control Panel we manufacture integrates industrial-grade hardware components:

• High-Brightness IPS Display & 5-Point Capacitive Optics: Featuring wide viewing angles and high contrast ratios, our IPS screens remain visible under bright indoor illumination and respond instantaneously to touch gestures—even with wet hands.
• 16 Years of In-House SMT PCBA Mastery: Manufactured on our automated high-speed SMT lines under ISO 9001:2015 Quality Systems, multi-core processors and flash memory modules are mounted with zero defects, guaranteeing long-term system stability.
• Die-Cast Thermal Dissipation & Power Management: Built with internal aluminum thermal structures, the housing rapidly dissipates CPU heat inside standard junction wall boxes, preventing screen ghosting and thermal throttling.

2. Multi-Protocol Integration & Smart Touch Control Panel Ecosystems

Modern intelligent buildings demand flexible multi-protocol wireless gateways that bridge local sub-devices with cloud automation platforms:

• Universal Wireless Gateway (Zigbee 3.0 & Matter Ready): Compliant with Connectivity Standards Alliance (CSA) Matter Specifications, our panel connects and manages up to 100+ sub-devices (dimmers, sensors, actuators) without requiring external hub hardware.
• Broad Smart Home Interoperability: Fully compatible with Tuya, Google Home, and Amazon Alexa ecosystems, allowing real-time smartphone app synchronization for indoor and outdoor lighting control.
• Custom One-Tap Scene Mastery: Pre-program one-touch automation scenes (e.g., “Cinema Mode” or “All-Off Energy Saver”) to dynamically adjust lighting color temperatures, close window shades, and optimize HVAC setpoints.

3. Factory Direct B2B Advantages & OEM Customization

Partnering directly with Shanxi Jinbiao Photoelectric Technology Co., Ltd. provides global real estate developers, system integrators, and regional distributors across Mexico, Russia, and the Middle East with distinct B2B advantages:

• Direct-from-Factory Pricing & High Margins: Direct factory pricing with zero trading markups, maximizing distributor profit margins on large-scale smart residential tenders.
• Exclusive Regional Protection & SKD / White-Label Support: We grant exclusive territorial rights to qualified partners. For international brands operating regional assembly facilities, we supply fully tested PCBA modules and IPS display assemblies in SKD (Semi-Knocked Down) format to lower import duties. Learn more on our OEM Manufacturing Services Page.
• Firmware & Multilingual UI Customization: We offer multi-language firmware loading (Spanish, Russian, Arabic) and custom boot-up developer branding. Contact Our Sales Engineering Team to request sample units and technical documentation.

Technical Specifications Overview

Parameter	Professional Specification	Engineering Standard / Application
Model Series	JB-ST Series (4-inch / 6-inch / 10-inch Options)	Smart Home, Hospitality & Office Central Wall Box
Display Technology	HD IPS LCD (Multi-Touch Capacitive Panel)	High-brightness, wide viewing angle optics
Processing Core	Quad-Core ARM Cortex-A High-Speed CPU	Industrial SMT PCBA architecture
Wireless Protocols	Wi-Fi 2.4G/5G, Zigbee 3.0, Bluetooth Mesh, Matter	Certified under CSA / Zigbee Alliance Standards
Input Voltage	AC 100–240V Wide Range (50/60Hz)	Fits standard EU, UK, and US wall junction boxes
Audio Hardware	Built-in Speaker & Dual-Array Noise-Canceling Mic	Integrated video intercom & voice control ready
Photobiological Safety	RG0 Exempt Group Display Certification	Low blue light emission under IEC 62471
Certifications	CE Marking, RoHS Directive, FCC, ISO 9001	Certified for European & global electrical codes

100% Quality Assurance & Factory Protocol

Every single Smart Touch Control Panel leaving our automated manufacturing complex undergoes a rigorous 4-stage quality verification process:

1. 96-Hour System Stress Burn-In: Continuous operational testing under maximum CPU load to verify power stability and heat dissipation.
2. 100,000-Cycle Touch Screen Durability Test: Automated robotic touch testing to ensure capacitive glass responsiveness and scratch resistance.
3. RF Wireless Signal Calibration: Spectrum analyzer verification of Zigbee 3.0, Wi-Fi, and Bluetooth transmission distance and sensitivity.
4. High-Voltage Insulation Safety Test: Dielectric withstand testing compliant with EU Low Voltage Directive 2014/35/EU.

The Jinbiao Guarantee: Backed by 16 years of manufacturing integrity, we support our smart wall panel series with an unconditional 3-Year Comprehensive Warranty. Request a Free Sample Unit today to evaluate our hardware for your next smart automation tender.

Technical Reviewer & Product Specialist

Written & Technically Verified by:

Abel Tian

International Business Specialist & Smart Building Automation Director

Shanxi Jinbiao Photoelectric Technology Co., Ltd.

With extensive expertise in cross-border industrial supply chains, OEM/ODM PCBA manufacturing, and smart building automation engineering, Abel specializes in providing specification-grade touch control systems and intelligent lighting controllers for global contractors, system integrators, and regional distributors.

🔗 Connect with Abel Tian on LinkedIn | Let’s discuss factory-direct pricing, custom SKD tariff-reduction strategies, and exclusive regional partnership terms for your market.

References & Regulatory Standards Citations

1. Matter 1.0 Specification – Unified IP-Based Connectivity Standard for Smart Home Gateways. Connectivity Standards Alliance (CSA).
2. IEC 62471:2006 – Photobiological safety of lamps and display systems (RG0 Exempt Group classification). International Electrotechnical Commission.
3. IEEE Std 1789-2015 – IEEE Recommended Practices for Modulating Current in High-Brightness Display Backlights for Mitigating Health Risks. Institute of Electrical and Electronics Engineers.
4. ISO 9001:2015 – Quality management systems — Requirements for high-precision SMT placement and PCBA assembly. International Organization for Standardization.
5. Directive 2011/65/EU (RoHS 2) & Directive 2014/35/EU (LVD) – Restriction of Hazardous Substances & Low Voltage Directive for electronic wall-mounted control gear. European Commission Environment & Trade Portal.
